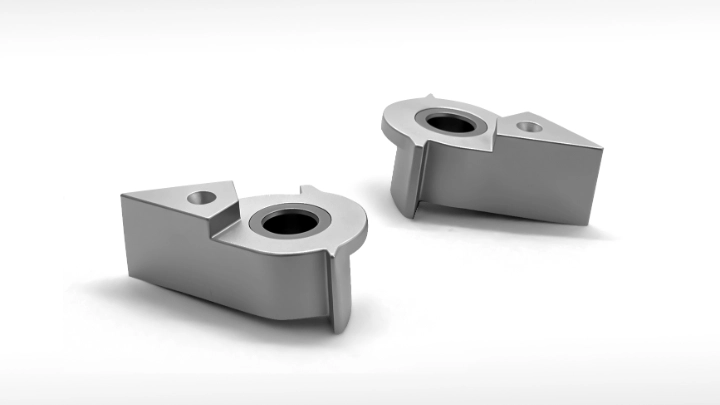

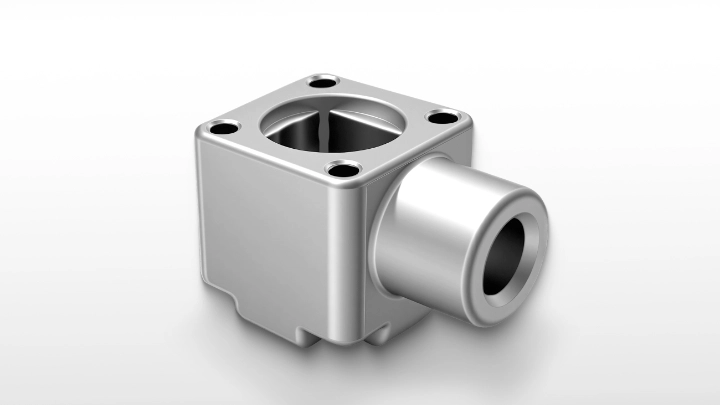

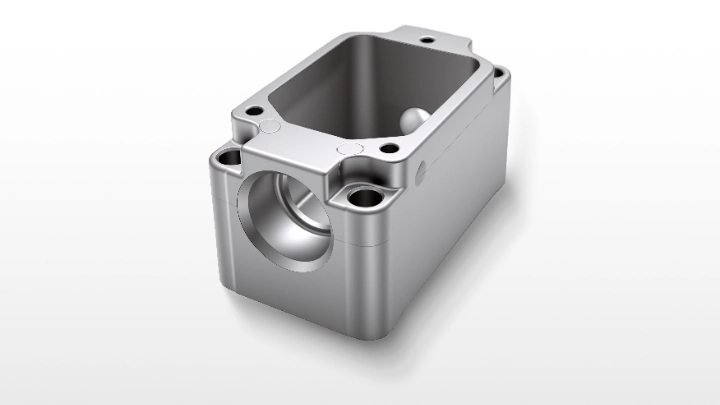

A. Integrated Forming Solution for Complex Structures
Project Overview
We manufacture metal injection molded parts with complex structures for industrial equipment clients. The one-piece integrated forming process effectively simplifies downstream processing procedures.
- Industry: Industrial Equipment
- Process: Metal Injection Molding (MIM)
- Material: Alloy Steel
- Annual Demand: Over 300,000 pieces
Project Challenges
- Long production lead time
- Unconventional complex structures with multiple holes and special profiles
- Multiple processing procedures required by traditional machining
- High production costs
Solutions
As an experienced MIM manufacturer, we provide professional solutions as follows:
- Stable sintering process control
- Integrated forming structural design
- Reduction of post-processing procedures
- Optimized mold design scheme
Project Achievements
✅ Processing procedures reduced by 50%
✅ Production cost reduced by 35%
✅ Lead time shortened by 45%
✅ One-time forming of complex structures realized
Customer Benefits
- Reduced total manufacturing costs
- Simplified supply chain management
- Improved overall production efficiency

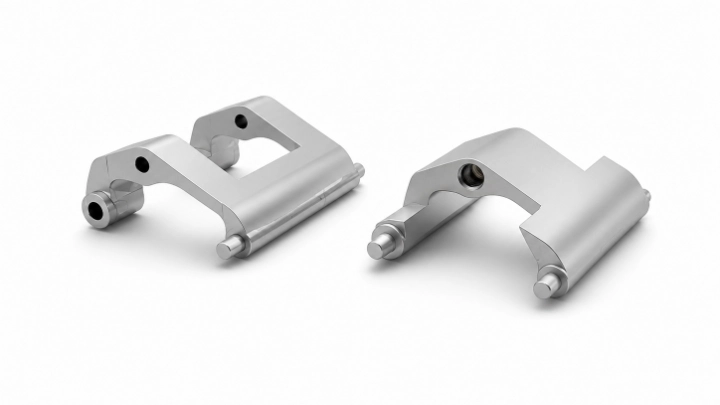

B. 17-4PH Industrial Connector
Project Overview
The MIM parts are applied to high-precision industrial connectors. These metal injection molded finished parts require excellent corrosion resistance, high dimensional accuracy and stable batch consistency.
- Industry: Industrial Connectors
- Process: Metal Injection Molding (MIM)
- Material: 17-4PH Stainless Steel
- Annual Demand: Over 100,000 pieces
Project Challenges
- Long lead time and high cost of traditional CNC machining
- Micro complex structural design
- Strict tolerance requirement (±0.03mm)
- Standard salt spray resistance performance requirement
Solutions
- Precise debinding and sintering process control
- DFM structural optimization tailored for MIM technology
- Micro-precision mold design
Project Achievements
✅ Cost reduced by over 30% compared with CNC machining
✅ Production yield increased to 98.5%
✅ Stable tolerance controlled within ±0.03mm
✅ Lead time shortened by 40%
Customer Benefits
- Reduced long-term manufacturing costs
- Realized stable mass production of customized MIM parts
- Significantly improved product batch consistency
MIM vs Traditional Manufacturing Processes
| Item | MIM | Powder Metallurgy | Investment Casting | CNC Machining |
| Relative Density | 98% | 86% | 98% | 100% |
| Tensile Strength | High | Low | High | High |
| Surface Finish | High | Medium | Medium | High |
| Miniaturization Capacity | High | Medium | Low | Medium |
| Thin-Wall Forming Capacity | High | Medium | Medium | Low |
| Geometric Complexity | High | Low | Medium | High |
| Design Tolerance Latitude | High | Medium | Medium | Medium |
| Material Selection Range | Wide | Wide | Moderate | Wide |
Surface Treatment Classification Table
| Category | Representative Processes | Core Applications |
| Mechanical Post-treatment | Tumbling, Sandblasting, Mechanical Polishing, Vibratory Grinding | Deburring, surface roughness adjustment, basic surface finishing |
| Chemical & Electrochemical Treatment | Chemical Polishing, Electropolishing, Passivation, Pickling | Improve surface gloss, enhance corrosion resistance, remove oxide scale |
| Plating & Coating | Electroplating, Electroless Nickel Plating, PVD, DLC, Anodizing | Wear & corrosion resistance, hard coatings, decorative coloring |
| Heat Treatment | Vacuum Quenching, Age Hardening, Carburizing / Nitriding, Carbonitriding | Boost hardness & tensile strength, surface strengthening |
| Special Treatments | Black Oxide Coating, Impregnation & Sealing, Spraying, Laser Marking, Brushed Finishing | Sealing for air tightness, decorative marking, special surface |
Get In Touch
FAQ
Here are some of the questions we get asked often. If yours isn’t answered, don’t hesitate to contact us, we’re happy to help!
-
How does MIM differ from conventional injection molding, machining, and die casting?
-
Compared to injection molding: MIM produces metal parts with significantly higher strength and hardness than plastic parts. Compared to machining: MIM is ideal for small, intricate, or multi-cavity parts, offering higher material utilization and lower per-unit costs in mass production. Compared to die casting: MIM supports a wider range of materials (e.g., stainless steel, titanium, superalloys), achieves higher density (≥95%), and delivers superior mechanical properties.
-
How do you ensure the quality of the parts you manufacture?
-
We apply full-process quality control across every stage: incoming material inspection, mold precision verification, MIM process parameter monitoring, debinding & sintering control, CNC/turning tolerance checks, and final surface treatment with dimensional measurement. Each batch undergoes AQL sampling inspection, and we provide full material certifications and inspection reports on request.
-
What is your experience with high-precision parts?
-
We have extensive experience producing high-precision MIM parts for 3C electronics, medical devices, and automotive applications — with tolerances as tight as ±0.02mm and surface roughness down to Ra 0.4μm after polishing. Our precision is backed by CNC machining, CNC turning, and coordinate measuring equipment, ensuring consistent quality even at high volumes.
-
What is the maximum complexity achievable with MIM?
-
MIM allows the production of highly complex geometries, including internal cavities, undercuts, thin walls, fine teeth, and intricate 3D structures that would be difficult or expensive to manufacture using traditional machining.
